S6006LS2 - Thyristors

Description

This Sxx06x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

  • Symbol IT(RMS) VDRM/ VRRM IGT Value 6 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples RoHS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S6006DS2 SCRs HAOPIN
S6000-AL Magnetics Coilcraft
S6008DS2 SCRs HAOPIN
S6008L Thyristor INCHANGE
S60100C EURO-DUCT - NARROW SLOT TECHSPAN

Other Datasheets by Littelfuse

Part Number Description
S6006LS3 Thyristors
S6006DS2 Thyristors
S6006DS3 Thyristors
S6006NS2 Thyristors
S6006NS3 Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

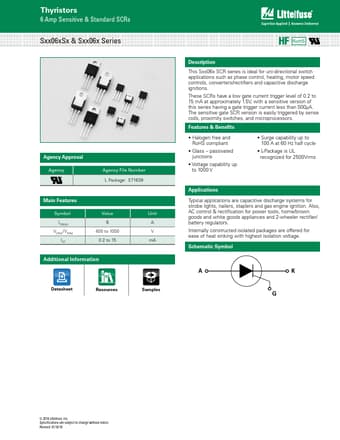

Thyristors 6 Amp Sensitive & Standard SCRs Sxx06xSx & Sxx06x Series Agency Approval Agency Agency File Number L Package: E71639 Main Features Symbol IT(RMS) VDRM/ VRRM IGT Value 6 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples RoHS Description This Sxx06x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of this series having a gate trigger current less than 500µA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors.
