S4010DS3, S4010LS2 - Thyristors

Name: S4010DS3
SKU: S4010DS3-1269939

Littelfuse

📥 Download Datasheet

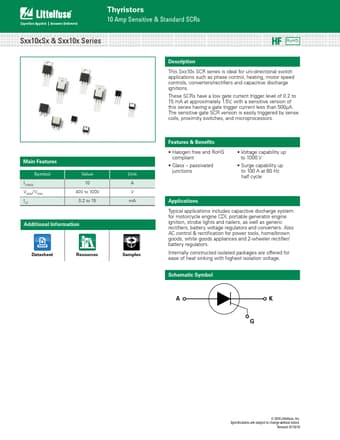

S4010DS3 Datasheet Preview — This datasheet PDF includes multiple part numbers: S4010DS3, S4010LS2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S4010DS3, S4010LS2
Manufacturer	Littelfuse
File Size	515.86 KB
Description	Thyristors
Datasheet	S4010LS2-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: S4010DS3, S4010LS2. Please refer to the document for exact specifications by model.

S4010DS3 Product details

Description

This Sxx10x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples Features & Benefits.
Halogen free and RoHS compliant.
Glass.
passivated junctions.
Voltage capability up to 1000 V.
Surge capability up to 100 A at 60 Hz half cycle.
