S4008NS2 - Thyristors

Download the S4008NS2 datasheet PDF. This datasheet also covers the S4008LS1 variant, as both devices belong to the same thyristors family and are provided as variant models within a single manufacturer datasheet.

Description

This Sxx08x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

  • Symbol IT(RMS) VDRM/ VRRM IGT Value 8 400 to 1000 0.2 to 15 Unit A V mA Additional Information Datasheet Resources Samples RoHS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S4008LS1-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
S4008 power MOSFET ROHM
S4008L Thyristor INCHANGE
S4003 N-channel SiC power MOSFET ROHM
S40032LK8 128Mb :x4 x8 x16 SDRAM SPECtek
S400DJ1-KS5 TFT LCD Module INNOLUX

Other Datasheets by Littelfuse

Part Number Description
S4008NS1 Thyristors
S4008NS3 Thyristors
S4008NS4 Thyristors
S4008DS1 Thyristors
S4008DS2 Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

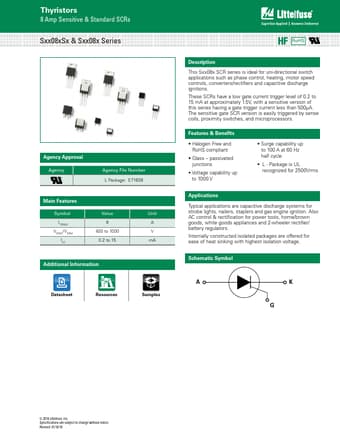

Thyristors 8 Amp Sensitive & Standard SCRs Sxx08xSx & Sxx08x Series Agency Approval Agency Agency File Number L Package: E71639 Main Features Symbol IT(RMS) VDRM/ VRRM IGT Value 8 400 to 1000 0.2 to 15 Unit A V mA Additional Information Datasheet Resources Samples RoHS Description This Sxx08x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of this series having a gate trigger current less than 500µA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors.
