QK016NH2 - Triac

Download the QK016NH2 datasheet PDF. This datasheet also covers the QK015L5 variant, as both devices belong to the same triac family and are provided as variant models within a single manufacturer datasheet.

General Description

The 15 Amp and 16 Amp bi-directional solid state switch series are designed for AC switching and phase control applications such as motor speed, temperature modulation controls, lighting controls, and static switching relays.

Key Features

  • Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 15 & 16 400 to 1000 10 to 80 Schematic Symbol Unit A V mA MT2 Additional Information MT1 G.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (QK015L5-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Littelfuse

Part Number Description
QK016NH3 Triac
QK016NH4 Triac
QK016NH6 Triac
QK016N5 Triac
QK016L5 Triac

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

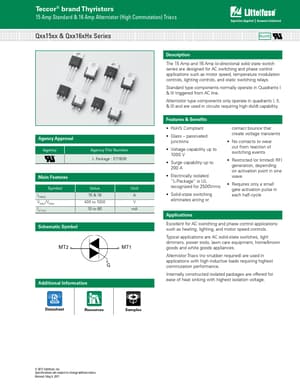

Teccor® brand Thyristors 15 Amp Standard & 16 Amp Alternistor (High Commutation) Triacs Qxx15xx & Qxx16xHx Series RoHS Agency Approval Agency Agency File Number L Package : E71639 Main Features Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 15 & 16 400 to 1000 10 to 80 Schematic Symbol Unit A V mA MT2 Additional Information MT1 G Description The 15 Amp and 16 Amp bi-directional solid state switch series are designed for AC switching and phase control applications such as motor speed, temperature modulation controls, lighting controls, and static switching relays. Standard type components normally operate in Quadrants I & III triggered from AC line. Alternistor type components only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.
