QJ8016LH4, QJ8016LH2 - Thyristors

Name: QJ8016LH4
SKU: QJ8016LH4-1414016

Littelfuse

The QJ8016LH4 by Littelfuse is a Thyristors. Below is the official datasheet preview.

📥 Download Datasheet

QJ8016LH4 Thyristors by Littelfuse - Datasheet Preview — Official preview page of the **QJ8016LH4** Thyristors datasheet (Littelfuse).

Datasheet Details

Part number	QJ8016LH4, QJ8016LH2
Manufacturer	Littelfuse
File Size	505.77 KB
Description	Thyristors
Datasheet	QJ8016LH2-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: QJ8016LH4, QJ8016LH2. Please refer to the document for exact specifications by model.

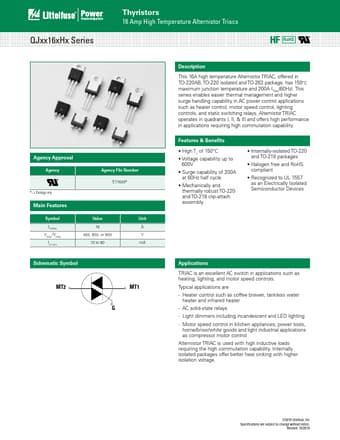

Additional preview pages of the QJ8016LH4 datasheet.

QJ8016LH4 Product details

Description

This 16A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated and TO-263 package, has 150°C maximum junction temperature and 200A ITSM(60Hz).

Features

Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Agency File Number E71639.
Value 16 400, 600, or 800 10 to 80 Unit A V mA Schematic Symbol MT2 MT1 G.
