Q4015LTH - Thyristors

Download the Q4015LTH datasheet PDF. This datasheet also covers the Q4004LT variant, as both devices belong to the same thyristors family and are provided as variant models within a single manufacturer datasheet.

General Description

The Quadrac is an internally triggered Triac designed for AC switching and phase control applications.

It is a Triac and DIAC in a single package, which saves user expense by eliminating the need for separate Triac and DIAC components.

Key Features

  • Symbol IT(RMS) VDRM / VRRM DIAC VBO T Value 4 to 15 400 to 600 33 to 43 Unit A V V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (Q4004LT-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
Q4018-AL Combination Line Filter Chokes Coilcraft
Q4007-AL Combination Line Filter Chokes Coilcraft

Other Datasheets by Littelfuse

Part Number Description
Q4015LT Thyristors
Q4015L5 Triac
Q4015LH2 Triac
Q4015LH3 Triac
Q4015LH4 Triac

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

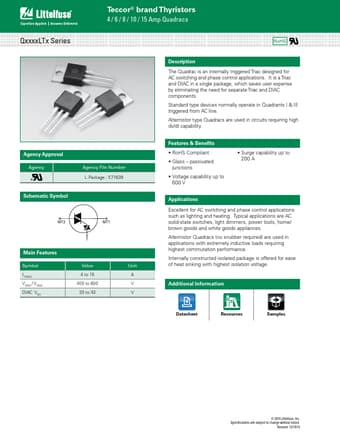

Teccor® brand Thyristors 4 / 6 / 8 / 10 / 15 Amp Quadracs QxxxxLTx Series RoHS ® Agency Approval Agency ® Schematic Symbol Agency File Number L Package : E71639 MT2 MT1 Main Features Symbol IT(RMS) VDRM / VRRM DIAC VBO T Value 4 to 15 400 to 600 33 to 43 Unit A V V Description The Quadrac is an internally triggered Triac designed for AC switching and phase control applications. It is a Triac and DIAC in a single package, which saves user expense by eliminating the need for separate Triac and DIAC components. Standard type devices normally operate in Quadrants I & III triggered from AC line. Alternistor type Quadracs are used in circuits requiring high dv/dt capability.
