P0720SCLRP - SIDACtor Protection Thyristors

General Description

Pxxx0SxL Series DO-214AA are designed to protect baseband equipment such as modems, line cards, CPE and DSL equipments from damaging overvoltage transients.

The series provide a robust peak surge current capability which enables equipments to comply with global regulatory standards.

Key Features

  • Low voltage overshoot.
  • Low on-state voltage.
  • Does not degrade in capability after multiple surge events within limit.
  • Low capacitance.
  • Fails short circuit when surged in excess of ratings.
  • Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01).
  • UL Recognized to UL 497B as an Isolated Loop Circuit Protector Applicable Global Standards.
  • TIA-968-A.
  • TIA-968-B.
  • ITU K.20/21 Enhance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P0720SC PROTECTION THYRISTORS MEI SEMI
P0720SC Transient Voltage Suppressors RUILON
P0720SC Thyristor Surge Suppressors Brightking
P0720SC Thyristors Solid Protection Device Bidirectional transient voltage suppressors WPM
P0720SC TSS JIEJIE

Other Datasheets by Littelfuse

Part Number Description
P0720SC MicroCapacitance SIDACtor Device
P0720SCMCLRP SIDACtor Protection Thyristors
P0720S3NLRP Thyristors
P0720SALRP SIDACtor Protection Thyristors
P0720SBLRP SIDACtor Protection Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

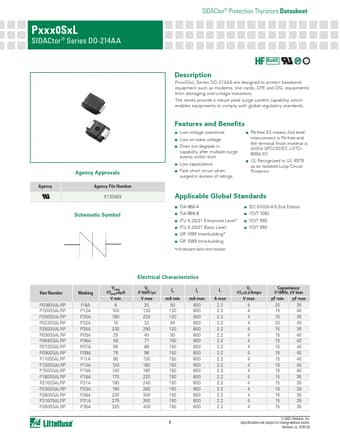

Pxxx0SxL SIDACtor® Series DO-214AA Agency Agency Approvals Agency File Number E133083 Schematic Symbol SIDACtor® Protection Thyristors Datasheet RoHS Pb e 3 Description Pxxx0SxL Series DO-214AA are designed to protect baseband equipment such as modems, line cards, CPE and DSL equipments from damaging overvoltage transients. The series provide a robust peak surge current capability which enables equipments to comply with global regulatory standards. Features and Benefits ■ Low voltage overshoot ■ Low on-state voltage ■ Does not degrade in capability after multiple surge events within limit. ■ Low capacitance ■ Fails short circuit when surged in excess of ratings ■ Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.
