MD16130S-BM2MM - Power Module

Key Features

  • Low reverse recovery loss.
  • Low forward voltage.
  • High surge current capability.
  • Low inductance package Agency Approvals AGENCY AGENCY FILE NUMBER E71639.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD160S08M3 Glass Passivated Three Phase Rectifier Bridge Yangzhou Yangjie
MD160S12M3 Glass Passivated Three Phase Rectifier Bridge Yangzhou Yangjie
MD160S16M3 Glass Passivated Three Phase Rectifier Bridge Yangzhou Yangjie
MD160S18M3 Glass Passivated Three Phase Rectifier Bridge Yangzhou Yangjie
MD1620F 5V Stepping Down DC to DC Converter Power IC Shindengen Electric Mfg.Co.Ltd

Other Datasheets by Littelfuse

Part Number Description
MD16160S-BM2MM Power Module
MD16180S-BM2MM Power Module
MD16200S-BM2MM Power Module
MD18130S-BM2MM Power Module
MD18160S-BM2MM Power Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

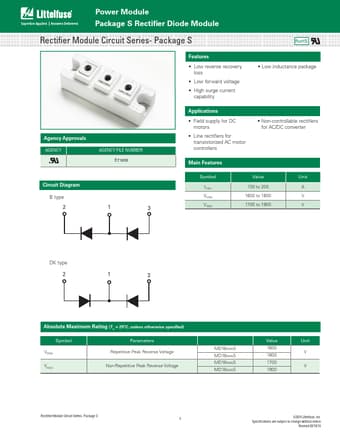

Power Module Package S Rectifier Diode Module Rectifier Module Circuit Series- Package S RoHS ® Features • Low reverse recovery loss • Low forward voltage • High surge current capability • Low inductance package Agency Approvals AGENCY AGENCY FILE NUMBER E71639 Applications • Field supply for DC motors • Line rectifiers for transistorized AC motor controllers Main Features • Non-controllable rectifiers for AC/DC converter Circuit Diagram 2 B type 2 1 1 3 3 Symbol IF(AV) VRRM VRSM Value 130 to 200 1600 to 1800 1700 to 1900 Unit A V V DK type 2 2 13 13 Absolute Maximum Rating (TC = 25°C, unless otherwise specified) Symbol VRRM Parameters Repetitive Peak Reverse Voltage VRSM Non-Repetitive Peak Reverse Voltage MD16xxxS MD18xxxS MD16xxxS MD18xxxS Value 1600 1800 1700
