MAC12SM - TRIACS

General Description

Designed for industrial and consumer applications for full wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications.

Key Features

  • Sensitive Gate Allows Triggering by Microcontrollers and other.
  • Logic Circuits.
  • Blocking Voltage to 800 Volts.
  • On-State Current Rating of 12 Amperes RMS at 70°C.
  • High Surge Current Capability.
  • 90 Amperes.
  • Rugged, Economical TO.
  • 220AB Package.
  • Glass Passivated Junctions for Reliability and Uniformity.
  • RoHS-compliant and lead-free.
  • Maximum Values of IGT, VGT and IH Specified for Ease of Design.
  • High Commutating di/dt.
  • 8.0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAC12SM Sensitive Gate Triacs ON Semiconductor
MAC12SN Sensitive Gate Triacs ON Semiconductor
MAC12 Triac Motorola
MAC125 Mbisture Analyzer MAC
MAC12D Triac Motorola

Other Datasheets by Littelfuse

Part Number Description
MAC12SN TRIACS
MAC15-10G TRIAC
MAC15-8 TRIAC
MAC15-8G TRIAC
MAC1510 TRIAC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

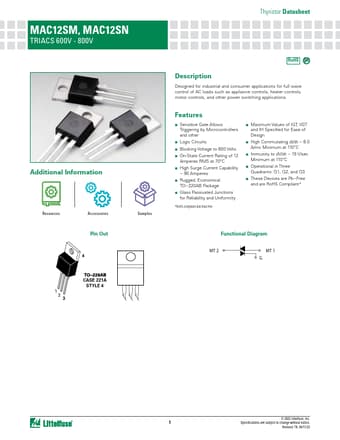

MAC12SM, MAC12SN TRIACS 600V - 800V Additional Information Resources Accessories Pin Out Samples CASE 221A STYLE 4 1 2 Thyristor Datasheet RoHS Pb Description Designed for industrial and consumer applications for full wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications. Features ■ Sensitive Gate Allows Triggering by Microcontrollers and other ■ Logic Circuits ■ Blocking Voltage to 800 Volts ■ On-State Current Rating of 12 Amperes RMS at 70°C ■ High Surge Current Capability − 90 Amperes ■ Rugged, Economical TO−220AB Package ■ Glass Passivated Junctions for Reliability and Uniformity *RoHS-compliant and lead-free ■ Maximum Values of IGT, VGT and IH Specified for Ease of Design ■ High Commutating di/dt − 8.
