LSP10120P - Surge Protection Module

Download the LSP10120P datasheet PDF. This datasheet also covers the LSP10 variant, as both devices belong to the same surge protection module family and are provided as variant models within a single manufacturer datasheet.

Description

The Littelfuse LSP10 thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.

It is constructed with Littelfuse thermally protected varistor technology.

Features

  • 20kA Maximum Discharge Current (Imax)m 8/20us.
  • Meets ANSI C82.77-52015: Location C High.
  • Meets ANSI C136.22015: Extreme Level.
  • Meets IEEE C62.41.2: Location Category C High.
  • Meets US Dept. of Energy MSSLC Model Spec.
  • Parallel or Series connected options.
  • Thermally protected Notes: 1. Self-declared compliance.
  • IP66 rated, dust-tight and water resistant.
  • IEC61643-11 Class II/ EN61643-11 Type 2 Compliant1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LSP10-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LSP1012 PIN Diodes Microsemi
LSP1011 PIN Diodes Microsemi
LSP1000 PIN Diodes Microsemi
LSP1002 PIN Diodes Microsemi
LSP1004 PIN Diodes Microsemi

Other Datasheets by Littelfuse

Part Number Description
LSP10 Surge Protection Module
LSP10240LLP Surge Protection Module
LSP10240P Surge Protection Module
LSP10277P Surge Protection Module
LSP10347P Surge Protection Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

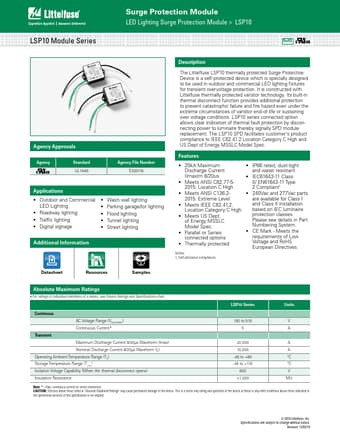

LSP10 Module Series Surge Protection Module LED Lighting Surge Protection Module > LSP10 RoHS Agency Approvals Agency Standard UL1449 Agency File Number E320116 Applications • Outdoor and Commercial LED Lighting • Roadway lighting • Traffic lighting • Digital signage • Wash wall lighting • Parking garage/lot lighting • Flood lighting • Tunnel lighting • Street lighting Additional Information Description The Littelfuse LSP10 thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection. It is constructed with Littelfuse thermally protected varistor technology.
