LSP05277P, LSP05 - LED Lighting Surge Protection

Name: LSP05277P
SKU: LSP05277P-842729

Littelfuse

📥 Download Datasheet

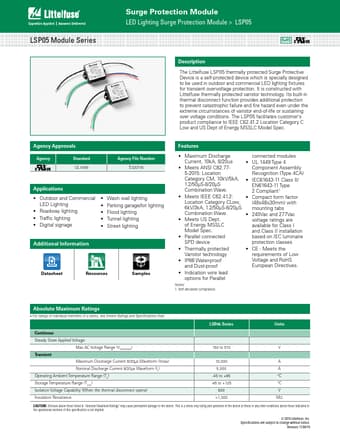

LSP05277P Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP05277P, LSP05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LSP05277P, LSP05
Manufacturer	Littelfuse
File Size	470.71 KB
Description	LED Lighting Surge Protection
Datasheet	LSP05-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: LSP05277P, LSP05. Please refer to the document for exact specifications by model.

LSP05277P Product details

Description

The Littelfuse LSP05 thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.

Features

Maximum Discharge connected modules Current, 10kA, 8/20us.
UL 1449 Type 4.
Meets ANSI C82.77- Component Assembly 5-2015: Location Recognition (Type 4CA) Category CM, 10kV/5kA, 1.2/50µS-8/20µS Combination Wave.
IEC61643-11 Class II/ EN61643-11 Type 2 Compliant1.
Meets IEEE C62.41.2:.
Compact form factor Location Category CLow, (48x48x30mm) with 6kV/3kA, 1.2/50µS-8/20µS mounting tabs Combination Wave.
240Vac a.
