LSIC2SD120N40PA - 2 x 20A SiC Schottky Barrier Diode

Littelfuse

The LSIC2SD120N40PA by Littelfuse is a 2 x 20A SiC Schottky Barrier Diode. Below is the official datasheet preview.

📥 Download Datasheet

LSIC2SD120N40PA 2 x 20A SiC Schottky Barrier Diode by Littelfuse - Datasheet Preview — Official preview page of the LSIC2SD120N40PA 2 x 20A SiC Schottky Barrier Diode datasheet (Littelfuse).

Datasheet Details

Part number	LSIC2SD120N40PA
Manufacturer	Littelfuse
File Size	364.71 KB
Description	2 x 20A SiC Schottky Barrier Diode
Datasheet	LSIC2SD120N40PA-Littelfuse.pdf

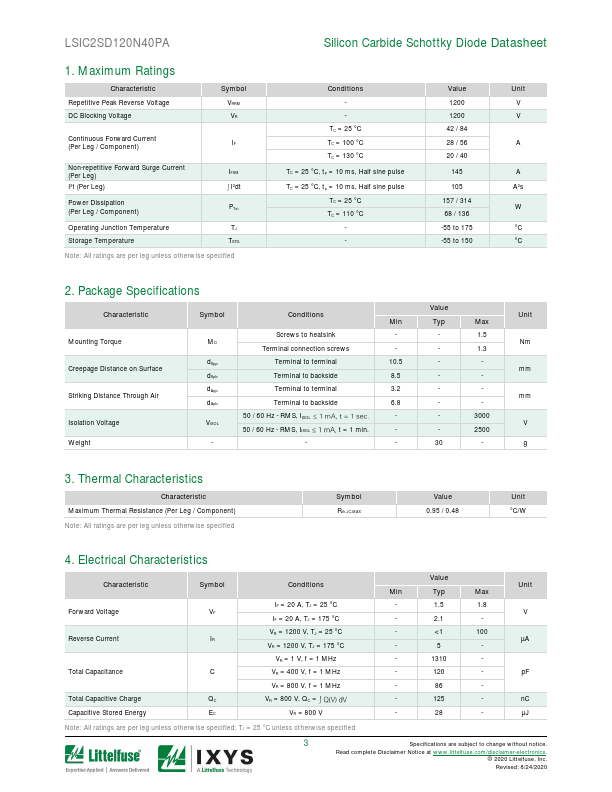

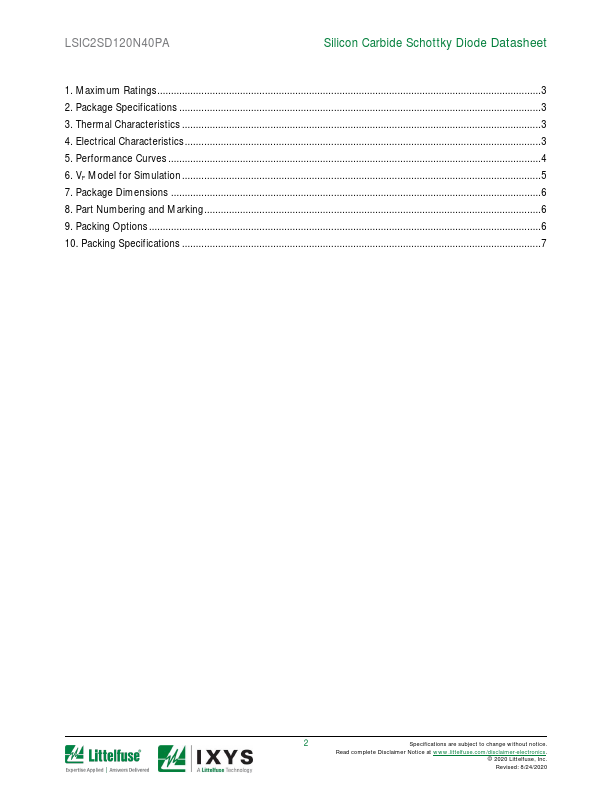

Additional preview pages of the LSIC2SD120N40PA datasheet.

LSIC2SD120N40PA Product details

Features

Positive temperature coefficient for safe operation and ease of paralleling.
175 °C maximum operating junction temperature.
Excellent surge capability.
Extremely fast, temperature-independent switching behavior.
Dramatically reduced switching losses compared to Si bipolar diodes.
Zero reverse recovery current.
Copper base plate with AlN isolation for low thermal resistance.
Isolation voltage: 3000 V.
UL Recognition.
