K2200EH70, K2200yH High Energy Bidirectional SIDACs

K2200EH70 Description

Kxxx0yH Series Teccor® brand Thyristors High Energy Bidirectional SIDACs RoHS Schematic Symbol .
The new Kxxx0yH is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at low repetition rate.

K2200EH70 Features

* A C Circuit Oriented
* T riggering Voltage of 190 to 280V
* 2 80A Pulse Current Capability

K2200EH70 Applications

* requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 and TO-92 leaded packages as well as DO-214 surface mount package. Voltage activation of this solid state switch is accomplished with peak voltage level of 190 to 280Volts. The SIDAC is a silicon bilat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: K2200EH70, K2200yH. Please refer to the document for exact specifications by model.

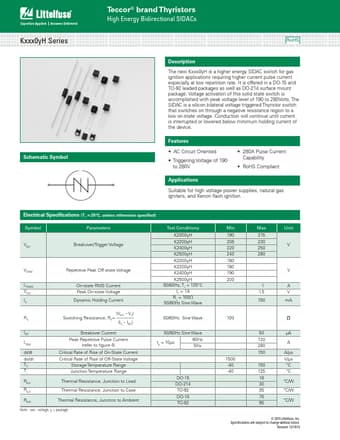

datasheet Preview Page 2 datasheet Preview Page 3
