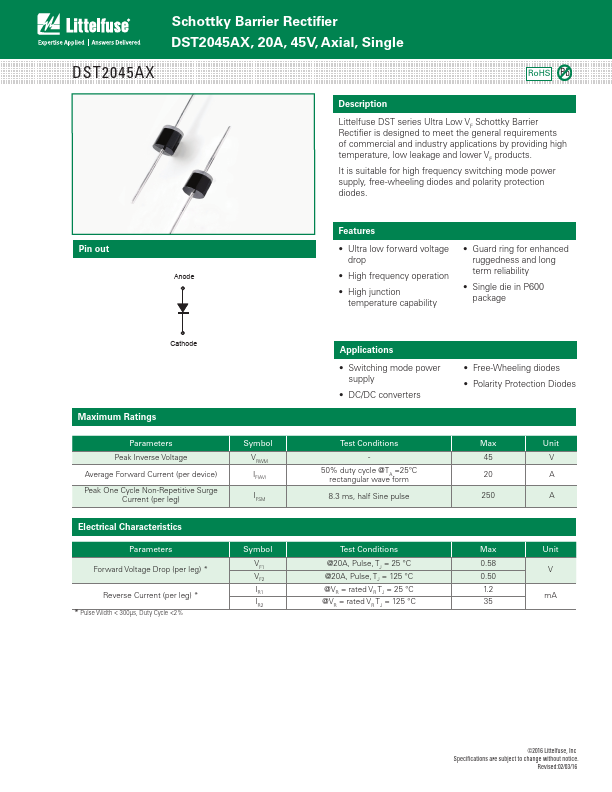

Description
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.
Features
- Ultra low forward voltage drop.
- H igh frequency operation.
- H igh junction temperature capability.
- Guard ring for enhanced ruggedness and long term reliability.
- Single die in P600 package
Cathode
Maximum Ratings
Parameters Peak Inverse Voltage Average Forward Current (per device) Peak One Cycle Non-Repetitive Surge
Current (per leg)
Electrical Characteristics
Parameters Forward Voltage Drop (per leg).
- Reverse Current (per leg).
- P.
