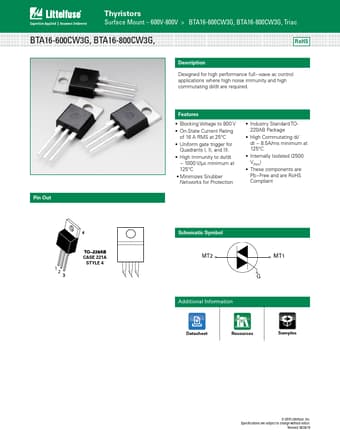

BTA16-600CW3G Datasheet Preview — Preview of BTA16-600CW3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA16-600CW3G
Manufacturer	Littelfuse
File Size	459.75 KB
Description	Thyristors
Datasheet	BTA16-600CW3G-Littelfuse.pdf

BTA16-600CW3G Product details

Description

Designed for high performance full wave ac control applications where high noise immunity and high commutating di/dt are required.

Features

Blocking Voltage to 800 V.
On-State Current Rating of 16 A RMS at 25°C.
Uniform gate trigger for Quadrants I, II, and III.
High Immunity to dv/dt.
1000 V/µs minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO220AB Package.
High Commutating di/ dt.
8.5A/ms minimum at 125°C.
Internally Isolated (2500 VRMS).
These components are Pb.
Free and are RoHS Compliant.
