5KP5.0A - TVS Diode

Description

The 5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • 5 kW peak pulse capability.
  • Typical IR less than 2μA at 10/1000μs waveform, when VBR min>12V repetition rate (duty.
  • High temperature cycles):0.01% to reflow soldering.
  • Glass passivated chip guaranteed: 260°C/40sec junction in P600 package / 0.375”, (9.5mm) lead.
  • Fast response time: typically less than 1.0ps length, 5 lbs. , (2.3kg) tension from 0 Volts to BV min.
  • Excellent clamping capability.
  • Typical failure mode is sh.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5KP5.0A 5000 Watt Axial Lead TVS GW
5KP5.0A Axial Lead Transient Voltage Suppressors SOCAY
5KP5.0A 5000W TRANSIENT VOLTAGE SUPPRESSOR Microsemi
5KP5.0A 5000W TRANSIENT VOLTAGE SUPPRESSOR Digitron Semiconductors
5KP5.0A 5000 Watt Peak Power Transient Voltage Suppressors SEP ELECTRONIC

Other Datasheets by Littelfuse

Part Number Description
5KP5.0A-HR TVS Diodes
5KP5.0A-HRA TVS Diodes
5KP5.0CA TVS Diode
5KP5.0CA-HR TVS Diodes
5KP5.0CA-HRA TVS Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

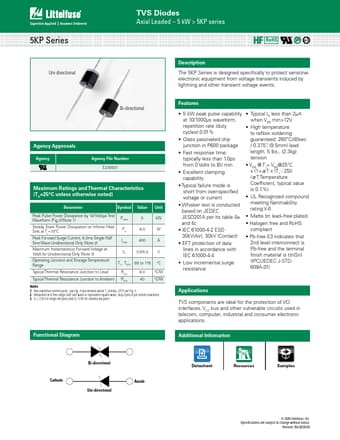

5KP Series TVS Diodes Axial Leaded – 5 kW > 5KP series RoHS Pb e3 Uni-directional Description The 5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2)(Note 1) PPPM 5 kW Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC PD 8.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave Unidirectional Only (Note 2) IFSM 400 A Maximum Instantaneous Forward Voltage at 100A for Unidirectional Only (Note 3) VF 3.5/5.
