5.0SMDJ58AS-HRA - Surface Mount TVS Diodes

Download the 5.0SMDJ58AS-HRA datasheet PDF (5.0SMDJ6.0AS-HRA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount tvs diodes.

Description

The 5.0SMDJxxS-HRA High Reliability series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

These are available with a variety of upscreening options for enhanced reliability.

Features

  • High reliability devices with.
  • Excellent clamping capability fabrication and assembly lots.
  • Low incremental surge traceability resistance.
  • Enhanced reliability screening options are available in reference to MIL-PRF-19500. Refer to screen process table for more detail on screening options.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMDJ6.0AS-HRA-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 5.0SMDJ58A - 16V - 100V Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)
  • 5.0SMDJ58A - Surface Mount Transient Voltage Suppressors (SOCAY)
  • 5.0SMDJ58A - Transient Voltage Suppressors (Brightking)
  • 5.0SMDJ58A - SURFACE MOUNT TVS DIODE (RFE)
  • 5.0SMDJ58A - 5000 WATT TVS COMPONENT (Protek Devices)
  • 5.0SMDJ58A - Transient Voltage Suppressor Diode (BOURNS)
  • 5.0SMDJ58A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • 5.0SMDJ58A - 5000W Transient Voltage Suppressor (WeEn)
  • 5.0SMDJ58A-Q - Transient Voltage Suppressor Diode (BOURNS)
  • 5.0SMDJ58 - Surface Mount Transient Voltage Suppressors (SOCAY)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text

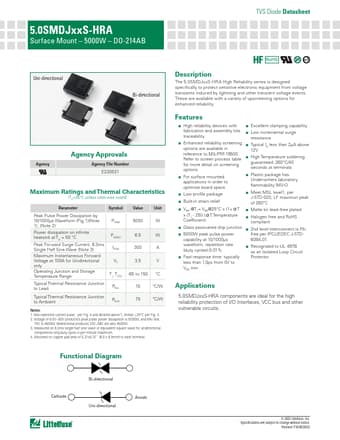

5.0SMDJxxS-HRA Surface Mount – 5000W – DO-214AB TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Agency Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Peak Pulse Power Dissipation by 10/1000μs Waveform (Fig.1)(Note PPPM 1), (Note 2) Power dissipation on infinite heatsink at TA = 50 °C Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) Maximum Instantaneous Forward Voltage at 100A for Unidirectional only Operating Junction and Storage Temperature Range PM(AV) IFSM VF TJ, TSTG Typical Thermal Resistance Junction to Lead RθJL Value 5000 6.5 300 3.5 -65 to 150 15 Unit W W A V °C °C/W Typical Thermal Resistance Junction to Ambient RθJA 75 °C/W Notes: 1.
