5.0SMDJ43CAS - TVS Diodes

Product Overview

Littelfuse

Datasheet Details

Part number	5.0SMDJ43CAS
Manufacturer	Littelfuse
File Size	1.15 MB
Description	TVS Diodes
Datasheet	5.0SMDJ43CAS Datasheet
Note	This datasheet PDF includes multiple part numbers: 5.0SMDJ43CAS, 5.0SMDJ6.0AS. Please refer to the document for exact specifications by model.

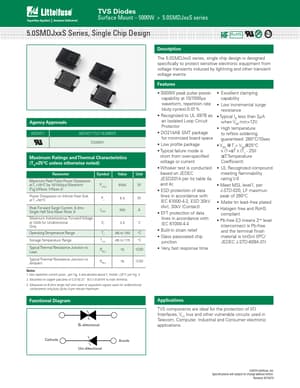

Additional preview pages of the 5.0SMDJ43CAS datasheet.

Product details

Description

The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%.
Recognized to UL 497B as an Isolated Loop Circuit Protector.
DO214AB SMT package for minimized board space.
Low profile package.
Typical failure mode is short from over-specified voltage or current.
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
ESD protection of data lines in accordance with IEC 61000-4-2, E.
