5.0SMDJ18AS-HRA - Surface Mount TVS Diodes

Download the 5.0SMDJ18AS-HRA datasheet PDF. This datasheet also covers the 5.0SMDJ6.0AS-HRA variant, as both devices belong to the same surface mount tvs diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The 5.0SMDJxxS-HRA High Reliability series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

These are available with a variety of upscreening options for enhanced reliability.

Features

  • High reliability devices with.
  • Excellent clamping capability fabrication and assembly lots.
  • Low incremental surge traceability resistance.
  • Enhanced reliability screening options are available in reference to MIL-PRF-19500. Refer to screen process table for more detail on screening options.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMDJ6.0AS-HRA-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5.0SMDJ18A 5000 WATT TVS COMPONENT Protek Devices
5.0SMDJ18A 16V - 100V Surface Mount Transient Voltage Suppressor Taiwan Semiconductor
5.0SMDJ18A Surface Mount Transient Voltage Suppressors SOCAY
5.0SMDJ18A Transient Voltage Suppressors Brightking
5.0SMDJ18A SURFACE MOUNT TVS DIODE RFE

Other Datasheets by Littelfuse

Part Number Description
5.0SMDJ18AS TVS Diodes
5.0SMDJ18A Transient Voltage Suppression Diodes
5.0SMDJ18CA Transient Voltage Suppression Diodes
5.0SMDJ18CAS TVS Diodes
5.0SMDJ18CAS-HRA Surface Mount TVS Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

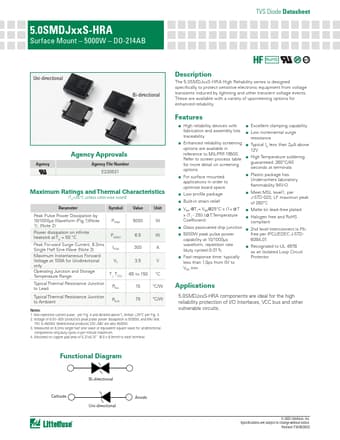

5.0SMDJxxS-HRA Surface Mount – 5000W – DO-214AB TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Agency Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Peak Pulse Power Dissipation by 10/1000μs Waveform (Fig.1)(Note PPPM 1), (Note 2) Power dissipation on infinite heatsink at TA = 50 °C Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) Maximum Instantaneous Forward Voltage at 100A for Unidirectional only Operating Junction and Storage Temperature Range PM(AV) IFSM VF TJ, TSTG Typical Thermal Resistance Junction to Lead RθJL Value 5000 6.5 300 3.5 -65 to 150 15 Unit W W A V °C °C/W Typical Thermal Resistance Junction to Ambient RθJA 75 °C/W Notes: 1.
