1SMC12AT3G - 1500 Watt Peak Power Zener Transient Voltage Suppressors

Download the 1SMC12AT3G datasheet PDF. This datasheet also covers the 1SMC5.0AT3G variant, as both devices belong to the same 1500 watt peak power zener transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Working Peak Reverse Voltage Range.
  • 5.0 V to 78 V.
  • Standard Zener Breakdown Voltage Range.
  • 6.7 V to 91.25 V.
  • Peak Power.
  • 1500 W @ 1 ms.
  • ESD Rating of Class 3 (> 16 KV) per Human Body Model.
  • Maximum Clamp Voltage @ Peak Pulse Current.
  • Low Leakage < 5 A Above 10 V.
  • UL 497B for Isolated Loop Circuit Protection.
  • Ma.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMC5.0AT3G-Littelfuse.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMC12AT3G
Manufacturer Littelfuse
File Size 620.53 KB
Description 1500 Watt Peak Power Zener Transient Voltage Suppressors
Datasheet download datasheet 1SMC12AT3G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMC12AT3G Zener Transient Voltage Suppressors ON Semiconductor
1SMC12AT3 Zener Transient Voltage Suppressors ON Semiconductor
1SMC12A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC
1SMC12A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Sunmate
1SMC12A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Bruckewell

Other Datasheets by Littelfuse

Part Number Description
1SMC10AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors
1SMC13AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors
1SMC14AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors
1SMC15AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors
1SMC16AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

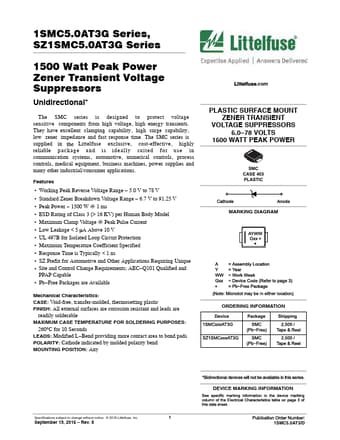

1SMC5.0AT3G Series, SZ1SMC5.0AT3G Series 1500 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional* The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in Littelfuse exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications. Features • Working Peak Reverse Voltage Range − 5.0 V to 78 V • Standard Zener Breakdown Voltage Range − 6.7 V to 91.
