15KPA130CA-HR Datasheet - Littelfuse

15KPA130CA-HR TVS Diodes

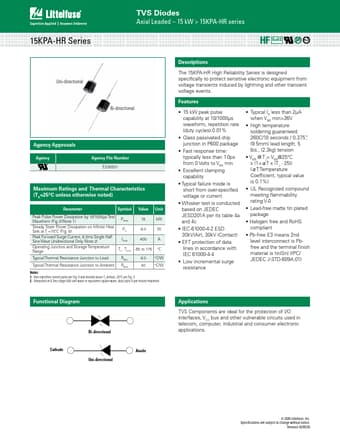

15KPA-HR Series TVS Diodes Axial Leaded 15 kW > 15KPA-HR series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2)(Note 1) PPPM 15 kW Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC (Fig. 6) PD Peak Forward Surge Current, 8.3ms Single Half Sine W.

15KPA130CA-HR Features

* 15 kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Glass passivated chip junction in P600 package

* Fast response time: typically less than 1.0ps from 0 Volts to VBR min

* Excellent clamping capability

* Typical failur

15KPA130CA-HR Datasheet (939.01 KB)
