15KPA120CA-HR - TVS Diodes

Download the 15KPA120CA-HR datasheet PDF. This datasheet also covers the 15KPA17A-HR variant, as both devices belong to the same tvs diodes family and are provided as variant models within a single manufacturer datasheet.

General Description

The 15KPA-HR High Reliability Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Key Features

  • 15 kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%.
  • Glass passivated chip junction in P600 package.
  • Fast response time: typically less than 1.0ps from 0 Volts to VBR min.
  • Excellent clamping capability.
  • Typical failure mode is short from over-specified voltage or current.
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
  • IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (15KPA17A-HR-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
15KPA120CA 15KW Transient Voltage Suppressor TAITRON
15KPA120CA Glass Passivated Junction TVS LGE
15KPA120CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR LRC
15KPA120CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR WEITRON
15KPA120CA Axial Lead Transient Voltage Suppressors ANOVA

Other Datasheets by Littelfuse

Part Number Description
15KPA120CA Transient Voltage Suppression Diodes
15KPA120A Transient Voltage Suppression Diodes
15KPA120A-HR TVS Diodes
15KPA100A Transient Voltage Suppression Diodes
15KPA100A-HR TVS Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

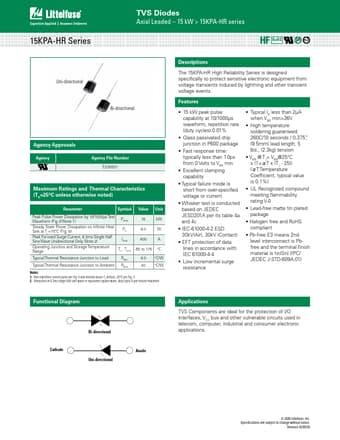

15KPA-HR Series TVS Diodes Axial Leaded – 15 kW > 15KPA-HR series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2)(Note 1) PPPM 15 kW Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC (Fig. 6) PD Peak Forward Surge Current, 8.3ms Single Half Sine Wave Unidirectional Only (Note 2) IFSM 8.0 W 400 A Operating Junction and Storage Temperature Range TJ, TSTG -55 to 175 °C Typical Thermal Resistance Junction to Lead RƟJL Typical Thermal Resistance Junction to Ambient RƟJA 8.0 °C/W 40 °C/W Notes: 1. Non-repetitive current pulse per Fig.
