0KLC007 - TRADITIONAL HIGH-SPEED FUSES

Littelfuse

Download the 0KLC007 datasheet PDF. This datasheet also covers the 0KLC001 variant, as both devices belong to the same traditional high-speed fuses family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

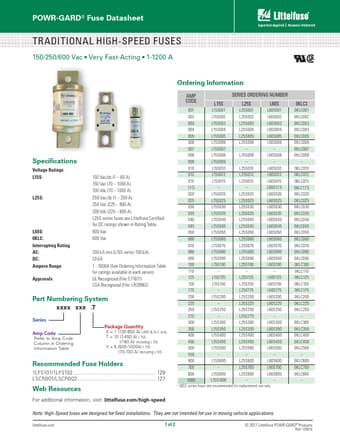

0KLC007 traditional high-speed fuses by Littelfuse - Datasheet Preview — Note: The manufacturer provides a single datasheet file (0KLC001-Littelfuse.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	0KLC007
Manufacturer	Littelfuse
File Size	220.19 KB
Description	TRADITIONAL HIGH-SPEED FUSES
Datasheet	0KLC007 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by Littelfuse

Part Number	Description
0KLC001	TRADITIONAL HIGH-SPEED FUSES
0KLC002	TRADITIONAL HIGH-SPEED FUSES
0KLC003	TRADITIONAL HIGH-SPEED FUSES
0KLC004	TRADITIONAL HIGH-SPEED FUSES
0KLC005	TRADITIONAL HIGH-SPEED FUSES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

POWR-GARD® Fuse Datasheet TRADITIONAL HIGH-SPEED FUSES 150/250/600 Vac • Very Fast-Acting • 1-1200 A Specifications Voltage Ratings L15S: L25S: L60S: 0KLC: Interrupting Rating AC: DC: Ampere Range Approvals 150 Vac/dc (1 – 60 A) 150 Vac (70 – 1000 A) 100 Vdc (70 – 1000 A) 250 Vac/dc (1 – 200 A) 250 Vac (225 – 800 A) 200 Vdc (225 – 800 A) L25S series fuses are Littelfuse Certified for DC ratings shown in Rating Table. 600 Vac 600 Vac 200 kA rms (L15S series 100 kA) 20 kA 1 - 1000A (See Ordering Information Table for ratings available in each series) UL Recognized (File: E71611) CSA Recognized (File: LR29862) Part Numbering System xxxx xxx .
