MOC3020S - Photocoupler

Download the MOC3020S datasheet PDF. This datasheet also covers the MOC3020-Lite variant, as both devices belong to the same photocoupler family and are provided as variant models within a single manufacturer datasheet.

Description

1.1

Features

  • Isolation voltage between input and output Viso : 5,000Vrms.
  • 6pin DIP photocoupler, triac driver output.
  • High repetitive peak off-state voltage VDRM : Min. 400V.
  • High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / s ).
  • Dual-in-line package : MOC3020, MOC3021, MOC3022, MOC3023.
  • Wide lead spacing package : MOC3020M, MOC3021M, MOC3022M, MOC3023M.
  • Surface mounting package : MOC3020S, MOC3021S, MOC3022S, MOC3023S.
  • Tape and reel packaging : M.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MOC3020-Lite-On.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MOC3020 OPTOCOUPLERS/OPTOISOLATORS Texas Instruments
MOC3020M 6-Pin DIP Random-Phase Triac Driver Output Optocoupler Fairchild Semiconductor
MOC3020M 6-Pin DIP Random-Phase Triac Driver Output Optocoupler ON Semiconductor
MOC3021 6-Pin DIP Random-Phase Optoisolator Motorola
MOC3021 6-Pin DIP Random-phase Optoisolator Fairchild Semiconductor

Other Datasheets by LITEON

Part Number Description
MOC3020 Photocoupler
MOC3020M Photocoupler
MOC3021 Photocoupler
MOC3021M Photocoupler
MOC3021S Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

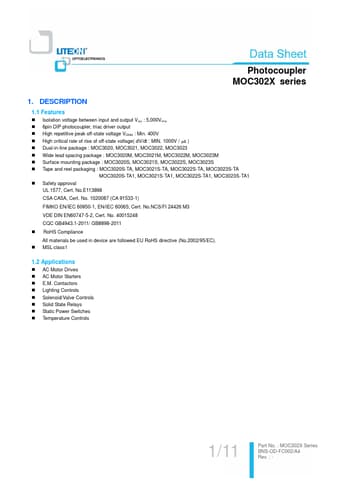

Photocoupler MOC302X series 1. DESCRIPTION 1.1 Features  Isolation voltage between input and output Viso : 5,000Vrms  6pin DIP photocoupler, triac driver output  High repetitive peak off-state voltage VDRM : Min. 400V  High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / s )  Dual-in-line package : MOC3020, MOC3021, MOC3022, MOC3023  Wide lead spacing package : MOC3020M, MOC3021M, MOC3022M, MOC3023M  Surface mounting package : MOC3020S, MOC3021S, MOC3022S, MOC3023S  Tape and reel packaging : MOC3020S-TA, MOC3021S-TA, MOC3022S-TA, MOC3023S-TA MOC3020S-TA1, MOC3021S-TA1, MOC3022S-TA1, MOC3023S-TA1  Safety approval UL 1577, Cert. No.E113898 CSA CA5A, Cert. No. 1020087 (CA 91533-1) FIMKO EN/IEC 60950-1, EN/IEC 60065; Cert. No.
