STPR850DF, STPR805DF_Lite, SUPER FAST GLASS PASSIVATED RECTIFIERS

www.DataSheet4U.com LITE-ON SEMICONDUCTOR STPR805DF thru 860DF REVERSE VOLTAGE - 50 to 600 Volts FORWARD CURRENT - 8.0 Amperes SUPER FAST GLASS PAS.

STPR805DF_Lite-OnTechnology.pdf

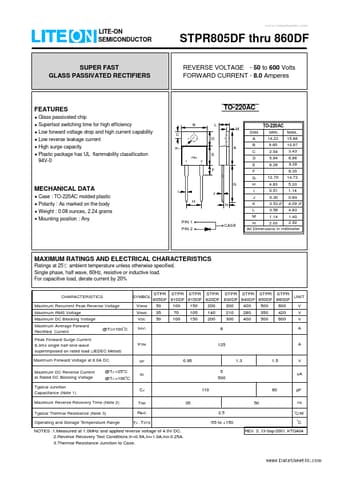

STPR850DF Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR850DF, STPR805DF_Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPR850DF, STPR805DF_Lite

Manufacturer:

Lite-On Technology

File Size:

65.05 KB

Description:

SUPER FAST GLASS PASSIVATED RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: STPR850DF, STPR805DF_Lite.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 TO-220AC L M D A E DIM. A B C D E F G I H J N F G H I J K TO
