STPR810DB - SUPER FAST GLASS PASSIVATED RECTIFIERS

This page provides the datasheet information for the STPR810DB, a member of the STPR805DB_Lite SUPER FAST GLASS PASSIVATED RECTIFIERS family.

Features

  • Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 TO-220AC L M D A E DIM. A B C D E F G I H J N F G H I J K TO-220AC MAX. MIN. 14.22 15.88 10.67 9.65 3.43 2.54 6.86 5.84 9.28 8.26 12.70 6.35 14.73.

📥 Download Datasheet

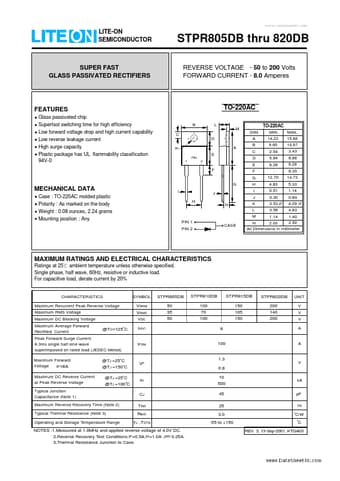

Datasheet preview – STPR810DB

Datasheet Details

Part number STPR810DB
Manufacturer Lite-On Technology
File Size 62.30 KB
Description SUPER FAST GLASS PASSIVATED RECTIFIERS
Datasheet download datasheet STPR810DB Datasheet
