DBFE-025U721 - 25W 0-10V Dimmable

Product Overview

Linkcom

📥 Download Datasheet

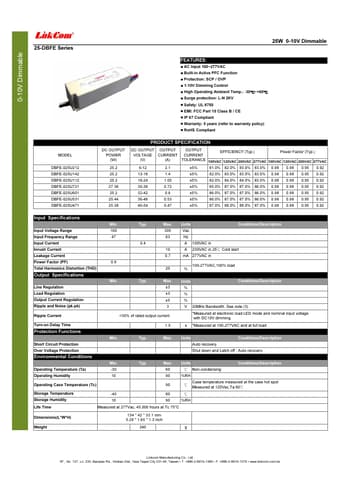

DBFE-025U721 25W 0-10V Dimmable by Linkcom - Datasheet Preview — Datasheet preview – DBFE-025U721

Datasheet Details

Part number	DBFE-025U721
Manufacturer	Linkcom
File Size	574.85 KB
Description	25W 0-10V Dimmable
Datasheet	DBFE-025U721 Datasheet
Note	This datasheet PDF includes multiple part numbers: DBFE-025U721, DBFE-025U212. Please refer to the document for exact specifications by model.
Additional preview pages of the DBFE-025U721 datasheet.

Product details

Features

AC Input 100~277VAC.
Built-in Active PFC Function.
Protection: SCP / OVP.
1-10V Dimming Control.
High Operating Ambient Temp. : -30℃~+60℃.
Surge protection: L-N 2KV.
Safety: UL 8750.
EMI: FCC Part 15 Class B / CE.
IP 67 Compliant.
Warranty: 5 years (refer to warranty policy).
RoHS Compliant MODEL DBFE-025U212 DBFE-025U142 DBFE-025U112 DBFE-025U721 DBFE-025U601 DBFE-025U531 DBFE-025U471 DC OUTPUT POWER (W) 25.2 25.2 25.2 27.36 25.2 25.44 2.
