LTC0195-50 Datasheet (LinkCom) - Broadband Access Transformer

LTC0195-50, Broadband Access Transformer

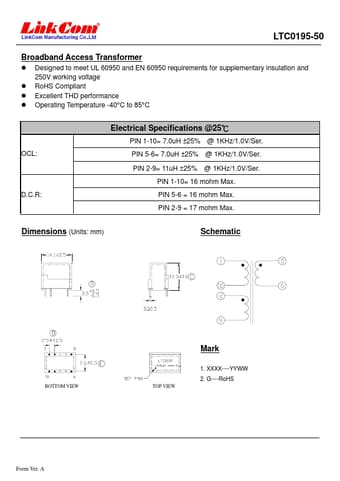

LTC0195-50 Broadband Access Transformer Designed to meet UL 60950 and EN 60950 requirements for supplementary insulation and 250V working voltage RoHS Compliant Excellent THD performance Operating Temperature -40°C to 85°C OCL: D.C.R: Electrical Specifications @25℃ PIN 1-10= 7.0uH ±25% @ 1KHz/1.0V/Ser.

PIN 5-6= 7.0uH ±25% @ 1KHz/1.0V/Ser.

PIN 2-9= 11uH ±25% @ 1KHz/1.0V/Ser.

PIN 1-10= 16 mohm Max.

PIN 5-6 = 16 mohm Max.

PIN 2-9 = 17 mohm Max.

Dimensions (Units: mm) Schematic BOTTOM VIEW TOP
