LPA1078 - G.Shdsl Line LPAnsformer

Download the LPA1078 datasheet PDF. This datasheet also covers the LPA1078-Link variant, as both devices belong to the same g.shdsl line lpansformer family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LPA1078-Link-PP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LPA1078
Manufacturer Link-PP
File Size 194.80 KB
Description G.Shdsl Line LPAnsformer
Datasheet download datasheet LPA1078 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LPA2010 Filterless 3W Class-D Mono Audio Amplifier ChipSourceTek
LPA2101 Filterless 30W Class F Mono Audio Amplifier ChipSourceTek
LPA2110 Filterless 30W Class F Mono Audio Amplifier ChipSourceTek
LPA2153 Filterless 2 x 8W Class-F Stereo Audio Amplifier Lowpowersemi
LPA2154 Filterless 2 x 8W Class-F Stereo Audio Amplifier Lowpowersemi

Other Datasheets by Link-PP

Part Number Description
LPA2038 ADSL Line LPAnsformer
LPA2064 ADSL Line LPAnsformers
LPA2068 ADSL Line LPAnsformers
LPA2088 ADSL Line LPAnsformer
LPA2104 ADSL Line LPAnsformers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

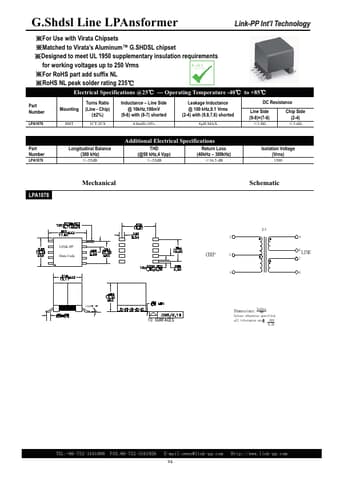

G.Shdsl Line LPAnsformer Link-PP Int’l Technology For Use with Virata Chipsets Matched to Virata’s Aluminum™ G.SHDSL chipset Designed to meet UL 1950 supplementary insulation requirements for working voltages up to 250 Vrms For RoHS part add suffix NL          RoHS NL peak solder rating 235 Electrical Specifications @25 --- Operating Temperature -40 to +85 Part Number LPA1078 Mounting SMT Turns Ratio (Line - Chip) (±2%) 1CT:2CS Inductance – Line Side @ 10kHz,100mV (9-6) with (8-7) shorted 4.0mH±10% Leakage Inductance @ 100 kHz,0.1 Vrms (2-4) with (9,8,7,6) shorted 8μH MAX DC Resistance Line Side (9-8)=(7-6) #3.8Ω Chip Side (2-4) $3.
