LTM2220-AA - 170Msps ADC

Linear

📥 Download Datasheet

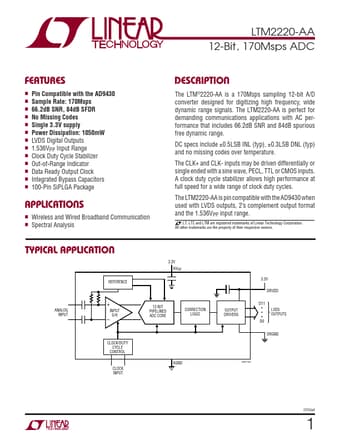

LTM2220-AA Datasheet Preview — Preview of LTM2220-AA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTM2220-AA
Manufacturer	Linear
File Size	190.19 KB
Description	170Msps ADC
Datasheet	LTM2220-AA-Linear.pdf

LTM2220-AA Product details

Description

The LTM®2220-AA is a 170Msps sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals.

Features

Pin Compatible with the AD9430.
Sample Rate: 170Msps.
66.2dB SNR, 84dB SFDR.
No Missing Codes.
Single 3.3V supply.
Power Dissipation: 1050mW.
LVDS Digital Outputs.
1.536VPP Input Range.
Clock Duty Cycle Stabilizer.
Out-of-Range Indicator.
Data Ready Output Clock.
Integrated Bypass Capacitors.
100-Pin SiPLGA Package.
