LTC7106 - A 7-Bit Current DAC

Name: LTC7106
SKU: LTC7106-1317006

Linear

📥 Download Datasheet

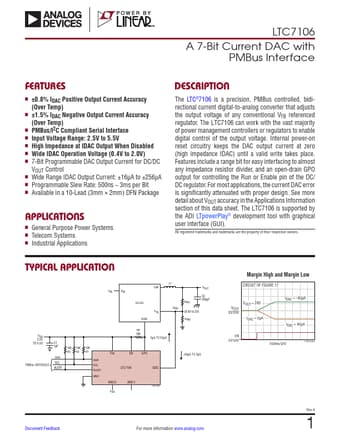

LTC7106 Datasheet Preview — Preview of LTC7106 PDF

Datasheet Details

Part number	LTC7106
Manufacturer	Linear
File Size	1.43 MB
Description	A 7-Bit Current DAC
Datasheet	LTC7106-Linear.pdf

LTC7106 Product details

Description

The LTC®7106 is a precision, PMBus controlled, bidirectional current digital-to-analog converter that adjusts the output voltage of any conventional VFB referenced regulator.

Features

nn ±0.8% IDAC Positive Output Current Accuracy (Over Temp) nn ±1.5% IDAC Negative Output Current Accuracy (Over Temp) nn PMBus/I2C Compliant Serial Interface nn Input Voltage Range: 2.5V to 5.5V nn High Impedance at IDAC Output When Disabled nn Wide IDAC Operation Voltage (0.4V to 2.0V) nn 7-Bit Programmable DAC Output Current for DC/DC VOUT Control nn Wide Range IDAC Output Current: ±16μA to ±256μA nn Programmable Slew Rate: 500ns ~ 3ms per Bit nn Available in a 10-Lead (3mm × 2mm) DFN Package.
