LTC5585 - Wideband IQ Demodulator

Linear

📥 Download Datasheet

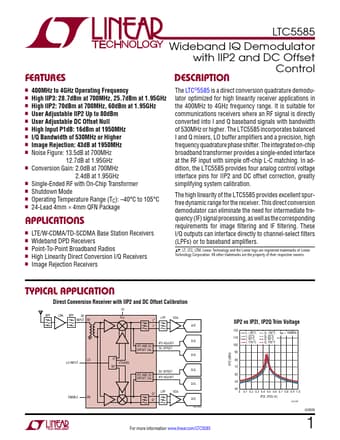

LTC5585 Datasheet Preview — Preview of LTC5585 PDF

Datasheet Details

Part number	LTC5585
Manufacturer	Linear
File Size	1.01 MB
Description	Wideband IQ Demodulator
Datasheet	LTC5585-Linear.pdf

LTC5585 Product details

Description

n 400MHz to 4GHz Operating Frequency n High IIP3: 28.7dBm at 700MHz, 25.7dBm at 1.95GHz n High IIP2: 70dBm at 700MHz, 60dBm at 1.95GHz n User Adjustable IIP2 Up to 80dBm n User Adjustable DC Offset Null n High Input P1dB: 16dBm at 1950MHz n I/Q Bandwidth of 530MHz or Higher n Image Rejection: 43dB at 1950MHz n Noise Figure: 13.5dB at 700MHz 12.7dB at 1.95GHz n Conversion Gain: 2.0dB at 700MHz 2.4dB at 1.95GHz n Single-Ended RF with On-Chip Transformer n Shutdo

Features

Wideband IQ Demodulator with IIP2 and DC Offset Control.
