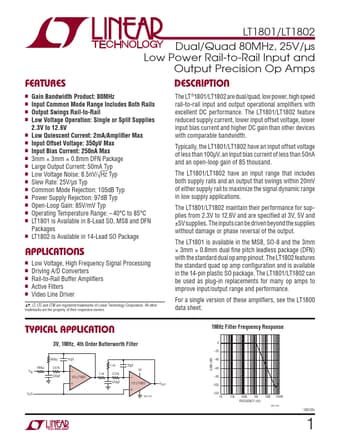

The LT1802 by Linear is a Low Power Rail-to-Rail Input and Output Precision Op Amps. Below is the official datasheet preview.
| Part number | LT1802, LT1801 |
|---|---|
| Manufacturer | Linear |
| File Size | 335.91 KB |
| Description | Low Power Rail-to-Rail Input and Output Precision Op Amps |
| Datasheet |
 LT1801-Linear.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: LT1802, LT1801. Please refer to the document for exact specifications by model. |
|
|
n Gain Bandwidth Product: 80MHz n Input Common Mode Range Includes Both Rails n Output Swings Rail-to-Rail n Low Voltage Operation: Single or Split Supplies 2.3V to 12.6V n Low Quiescent Current: 2mA/Amplifier Max n Input Offset Voltage: 350μV Max n Input Bias Current: 250nA Max n 3mm × 3mm × 0.8mm DFN Package n Large Output Current: 50mA Typ n Low Voltage Noise: 8.5nV/√Hz Typ n Slew Rate: 25V/μs Typ n Common Mode Rejection: 105dB Typ n Power Supply Rejection: 97dB Typ n Open-Loop Gain: 85V/mV T
