LT1036 - Logic Controlled Regulator

Features

  • Two Regulated Outputs: 12V at 3A 5V at 75mA.
  • 2% Output Voltage Tolerance.
  • 60dB Ripple Rejection.
  • 0.7% Load Regulation.
  • TTL and CMOS Compatible Logic Control.
  • 100% Thermal Burn-In on All Devices U.

📥 Download Datasheet

Datasheet preview – LT1036

📁 Similar Datasheet

  • LT1036C - Logic Controlled Regulator (Linear Technology)
  • LT1036M - Logic Controlled Regulator (Linear Technology)
  • LT103 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT1030 - Quad Low Power Line Driver (Linear Technology)
  • LT1030C - QUADRUPLE LOW-POWER LINE DRIVER (Texas Instruments)
  • LT1030CS - Quad Low Power Line Driver (Linear Technology)
  • LT1031 - Precision 10 Volt Reference (Linear Technology)
  • LT1032 - Quad Low Power Line Driver (Linear Technology)
  • LT1033 - 3A Negative Adjustable Regulator (Linear Technology)
  • LT1037 - PRECISION OPERATIONAL AMPLIFIERS (Texas Instruments)
Other Datasheets by Linear

Full PDF Text Transcription

Click to expand full text

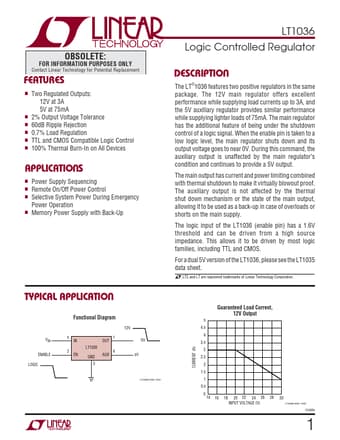

U U OBSOLETE: FOR INFORMATION PURPOSES ONLY Contact Linear Technology for Potential Replacement FEATURES ■ Two Regulated Outputs: 12V at 3A 5V at 75mA ■ 2% Output Voltage Tolerance ■ 60dB Ripple Rejection ■ 0.7% Load Regulation ■ TTL and CMOS Compatible Logic Control ■ 100% Thermal Burn-In on All Devices U APPLICATIO S ■ Power Supply Sequencing ■ Remote On/Off Power Control ■ Selective System Power During Emergency Power Operation ■ Memory Power Supply with Back-Up LT1036 Logic Controlled Regulator DESCRIPTIO The LT®1036 features two positive regulators in the same package. The 12V main regulator offers excellent performance while supplying load currents up to 3A, and the 5V auxiliary regulator provides similar performance while supplying lighter loads of 75mA.
