LTC7510 - Digital DC/DC Controller

Name: LTC7510
SKU: LTC7510-675191

Linear Technology

📥 Download Datasheet

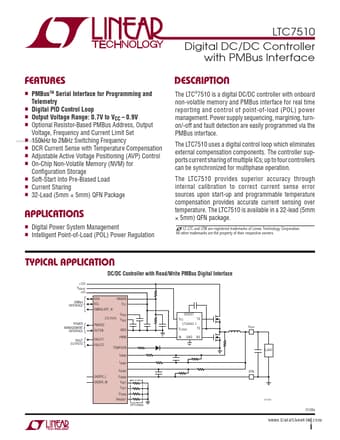

LTC7510 Datasheet Preview — Preview of LTC7510 PDF

Datasheet Details

Part number	LTC7510
Manufacturer	Linear Technology
File Size	88.49 KB
Description	Digital DC/DC Controller
Datasheet	LTC7510_LinearTechnology.pdf

LTC7510 Product details

Description

The LTC®7510 is a digital DC/DC controller with onboard non-volatile memory and PMBus interface for real time reporting and control of point-of-load (POL) power management.

Features

PMBusTM Serial Interface for Programming and Telemetry.
Digital PID Control Loop.
Output Voltage Range: 0.7V to V CC.
0.9V.
Optional Resistor-Based PMBus Address, Output Voltage, Frequency and Current Limit Set.
www. DataSheet4U. com 150kHz to 2MHz Switching Frequency.
DCR Current Sense with Temperature Compensation.
Adjustable Active Voltage Positioning (AVP) Control.
On-Chip Non-Volatile Memory (NVM) for Conﬁguration Storage.
Soft-Start Into Pre-B.
