LTC6804-1 - Multicell Battery Monitors

Name: LTC6804-1
SKU: LTC6804-1-729270

Linear Technology

📥 Download Datasheet

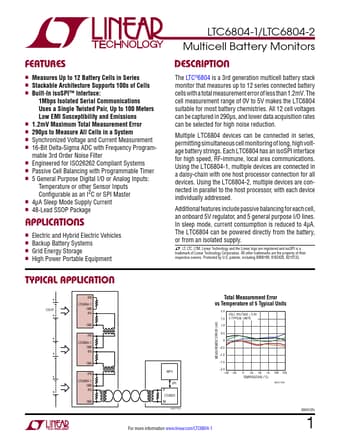

LTC6804-1 Datasheet Preview — Preview of LTC6804-1 PDF

Datasheet Details

Part number	LTC6804-1
Manufacturer	Linear Technology
File Size	965.32 KB
Description	Multicell Battery Monitors
Datasheet	LTC6804-1_LinearTechnology.pdf

LTC6804-1 Product details

Description

The LTC®6804 is a 3rd generation multicell battery stack monitor that measures up to 12 series connected battery cells with a total measurement error of less than 1.2mV.

Features

nn Measures Up to 12 Battery Cells in Series nn Stackable Architecture Supports 100s of Cells nn Built-In isoSPI™ Interface: 1Mbps Isolated Serial Communications Uses a Single Twisted Pair, Up to 100 Meters Low EMI Susceptibility and Emissions nn 1.2mV Maximum Total Measurement Error nn 290µs to Measure All Cells in a System nn Synchronized Voltage and Current Measurement nn 16-Bit Delta-Sigma ADC with Frequency Programmable 3rd Order Noise Filter nn Engineered for ISO26262 Compliant Syste.
