LTC5590 - Dual 600MHz to 1.7GHz High Dynamic Range Downconverting Mixer

Name: LTC5590
SKU: LTC5590-832061

Linear Technology

📥 Download Datasheet

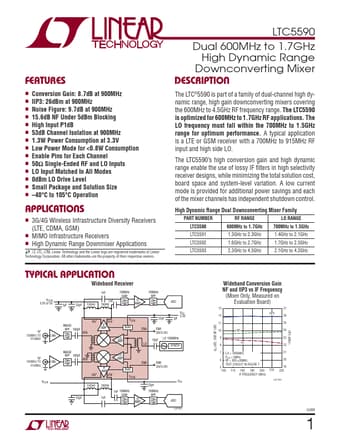

LTC5590 Datasheet Preview — Preview of LTC5590 PDF

Datasheet Details

Part number	LTC5590
Manufacturer	Linear Technology
File Size	371.27 KB
Description	Dual 600MHz to 1.7GHz High Dynamic Range Downconverting Mixer
Datasheet	LTC5590-LinearTechnology.pdf

LTC5590 Product details

Description

The LTC®5590 is part of a family of dual-channel high dynamic range, high gain downconverting mixers covering the 600MHz to 4.5GHz RF frequency range.

Features

n Conversion Gain: 8.7dB at 900MHz n IIP3: 26dBm at 900MHz n Noise Figure: 9.7dB at 900MHz n 15.6dB NF Under 5dBm Blocking n High Input P1dB n 53dB Channel Isolation at 900MHz n 1.3W Power Consumption at 3.3V n Low Power Mode for.
