LTC4267 - Power over Ethernet IEEE 802.3af PD Interface

Features

  • Complete Power Interface Port for IEEE 802®.3af Powered Device (PD).
  • Onboard 100V, 400mA UVLO Switch.
  • Precision Dual Level Inrush Current Limit.
  • Integrated Current Mode Switching Regulator.
  • Onboard 25kΩ Signature Resistor with Disable.
  • Programmable Classification Current (Class 0-4).
  • Thermal Overload Protection.
  • Power Good Signal.
  • Integrated Error Amplifier and Voltage Reference.
  • Low Profile 16-Pin SSOP and 3mm × 5mm DFN Packages U.

📥 Download Datasheet

Datasheet preview – LTC4267

📁 Similar Datasheet

  • LTC4269-1 - IEEE 802.3at PD And Synchronous No-Opto Flyback Controller (Linear Technology Corporation)
  • LTC4269-2 - IEEE 802.3at High Power PD And Synchronous Forward Controller (Linear Technology Corporation)
  • LTC4215-2 - Hot Swap Controller (Linear)
  • LTC4215-3 - Hot Swap Controller (Linear)
  • LTC4225-1 - Dual Ideal Diode and Hot Swap Controller (Linear)
  • LTC4225-2 - Dual Ideal Diode and Hot Swap Controller (Linear)
  • LTC4227 - Dual Ideal Diode and Single Hot Swap Controller (Linear)
  • LTC4229 - Ideal Diode and Hot Swap Controller (Linear)
  • LTC4231 - Micropower Hot Swap Controller (Analog Devices)
  • LTC4231 - Micropower Hot Swap Controller (Linear)
Other Datasheets by Linear Technology
  • LTC4267-1 - Power over Ethernet IEEE 802.3af PD Interface
  • LTC4267-3 - Power over Ethernet IEEE 802.3af PD Interface
  • LTC4260 - Positive High Voltage Hot Swap Controller
  • LTC4261 - Negative Voltage Hot Swap Controllers
  • LTC4261-2 - Negative Voltage Hot Swap Controllers
  • LTC4263 - Single IEEE 802.3af Compliant PSE Controller
  • LTC4263-1 - High Power Single PSE Controller
  • LTC4264 - High Power PD Interface Controller

Full PDF Text Transcription

Click to expand full text

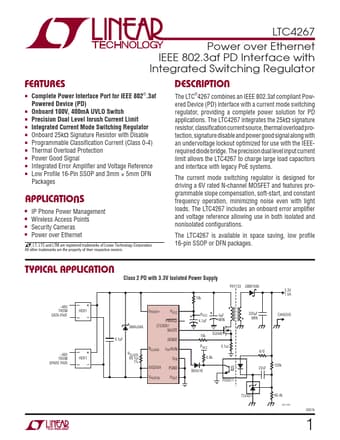

U U LTC4267 Power over Ethernet IEEE 802.3af PD Interface with Integrated Switching Regulator FEATURES ■ Complete Power Interface Port for IEEE 802®.3af Powered Device (PD) ■ Onboard 100V, 400mA UVLO Switch ■ Precision Dual Level Inrush Current Limit ■ Integrated Current Mode Switching Regulator ■ Onboard 25kΩ Signature Resistor with Disable ■ Programmable Classification Current (Class 0-4) ■ Thermal Overload Protection ■ Power Good Signal ■ Integrated Error Amplifier and Voltage Reference ■ Low Profile 16-Pin SSOP and 3mm × 5mm DFN Packages U APPLICATIO S ■ IP Phone Power Management ■ Wireless Access Points ■ Security Cameras ■ Power over Ethernet , LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
