LTC4155 - Dual-Input Power Manager / 3.5A Li-Ion Battery Charger

Name: LTC4155
SKU: LTC4155-921216

Linear Technology

📥 Download Datasheet

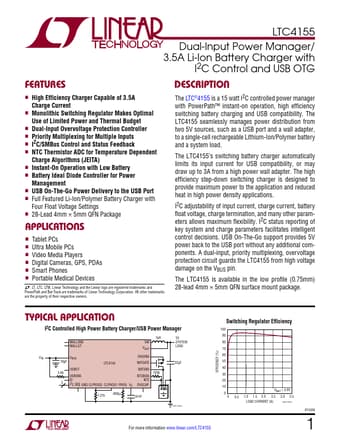

LTC4155 Datasheet Preview — Preview of LTC4155 PDF

Datasheet Details

Part number	LTC4155
Manufacturer	Linear Technology
File Size	503.10 KB
Description	Dual-Input Power Manager / 3.5A Li-Ion Battery Charger
Datasheet	LTC4155-LinearTechnology.pdf

LTC4155 Product details

Description

The LTC®4155 is a 15 watt I2C controlled power manager with PowerPath™ instant-on operation, high efficiency switching battery charging and USB compatibility.

Features

n High Efficiency Charger Capable of 3.5A Charge Current n Monolithic Switching Regulator Makes Optimal Use of Limited Power and Thermal Budget n Dual-Input Overvoltage Protection Controller n Priority Multiplexing for Multiple Inputs n I2C/SMBus Control and Status Feedback n NTC Thermistor ADC for Temperature Dependent Charge Algorithms (JEITA) n Instant-On Operation with Low Battery n Battery Ideal Diode Controller for Power Management n USB On-The-Go Power Delivery to the USB Port n Full Feat.
