LTC4078X - Dual Input Li-Ion Battery Charger

Linear Technology

The LTC4078X by Linear Technology is a Dual Input Li-Ion Battery Charger. Below is the official datasheet preview.

📥 Download Datasheet

LTC4078X Dual Input Li-Ion Battery Charger by Linear Technology - Datasheet Preview — Official preview page of the **LTC4078X** Dual Input Li-Ion Battery Charger datasheet (Linear Technology).

Datasheet Details

Part number	LTC4078X
Manufacturer	Linear Technology
File Size	191.57 KB
Description	Dual Input Li-Ion Battery Charger
Datasheet	LTC4078X_LinearTechnology.pdf

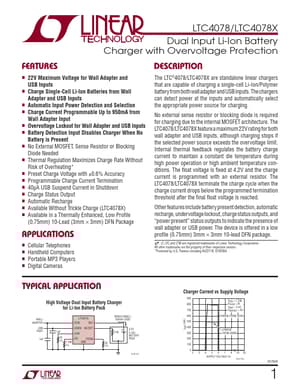

Additional preview pages of the LTC4078X datasheet.

LTC4078X Product details

Description

The LTC®4078/LTC4078X are standalone linear chargers that are capable of charging a single-cell Li-Ion/Polymer battery from both wall adapter and USB inputs.

Features

n 22V Maximum Voltage for Wall Adapter and USB Inputs n Charge Single-Cell Li-Ion Batteries from Wall Adapter and USB Inputs n Automatic Input Power Detection and Selection n Charge Current Programmable Up to 950mA from Wall Adapter Input n Overvoltage Lockout for Wall Adapter and USB Inputs n Battery Detection Input Disables Charger When No Battery is Present n No External MOSFET, Sense Resistor or Blocking Diode Needed n Thermal Regulation Maximizes Charge Rate Without Risk of Overheating.
