LTC4055 - USB Power Controller and Li-Ion Linear Charger

📥 Download Datasheet

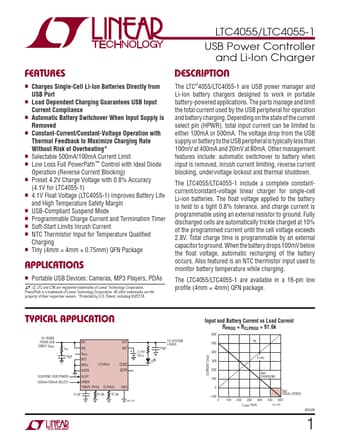

Preview of LTC4055 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC4055
Manufacturer Linear Technology
File Size 287.21 KB
Description USB Power Controller and Li-Ion Linear Charger
Datasheet download datasheet LTC4055_LinearTechnology.pdf

LTC4055 Product details

Description

n Charges Single-Cell Li-Ion Batteries Directly from USB Port n Load Dependent Charging Guarantees USB Input Current Compliance n Automatic Battery Switchover When Input Supply is Removed n Constant-Current/Constant-Voltage Operation with Thermal Feedback to Maximize Charging Rate Without Risk of Overheating n Selectable 500mA/100mA Current Limit n Low Loss Full PowerPath™ Control with Ideal Diode Operation (Reverse Current Blocking) n Preset 4.2V Charge Voltage with 0.8% Accuracy (4.1V fo
