LTC3860 - Voltage Mode DC/DC Controller

Linear Technology

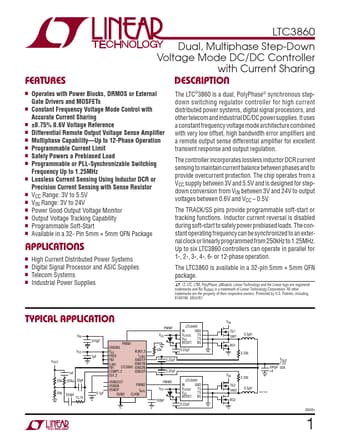

LTC3860 Datasheet Preview — Preview of LTC3860 PDF

Datasheet Details

Part number	LTC3860
Manufacturer	Linear ↗ Technology
File Size	440.86 KB
Description	Voltage Mode DC/DC Controller
Datasheet	LTC3860_LinearTechnology.pdf

LTC3860 Product details

Description

n Operates with Power Blocks, DRMOS or External Gate Drivers and MOSFETs n Constant Frequency Voltage Mode Control with Accurate Current Sharing n ±0.75% 0.6V Voltage Reference n Differential Remote Output Voltage Sense Ampliﬁer n Multiphase Capability Up to 12-Phase Operation n Programmable Current Limit n Safely Powers a Prebiased Load n Programmable or PLL-Synchronizable Switching Frequency Up to 1.25MHz n Lossless Current Sensing Using Inductor DCR or Precision Current Sensing with

Features

Dual, Multiphase Step-Down Voltage Mode DC/DC Controller with Current Sharing.
