LTC3850-1, LTC3850 2-Phase Synchronous Step-Down Switching Controller

LTC3850-1 Description

LTC3850/LTC3850-1 Dual, 2-Phase Synchronous Step-Down Switching Controller .
The LTC®3850 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages.

LTC3850-1 Features

* n Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise n High Efficiency: Up to 95% n RSENSE or DCR Current Sensing n ±1% 0.8V Output Voltage Accuracy n Phase-Lockable Fixed Frequency 250kHz to 780kHz n Supports Pre-Biased Output n Dual N-Channel MOSF

LTC3850-1 Applications

* APPLICATIONS n Notebook and Palmtop Computers n Portable Instruments n Battery-Operated Digital Devices n DC Power Distribution Systems All registered trademarks and trademarks are the property of their respective owners. Protected by U. S. patents, including 5481178, 5705919, 5929620, 6100678, 6

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC3850-1, LTC3850. Please refer to the document for exact specifications by model.

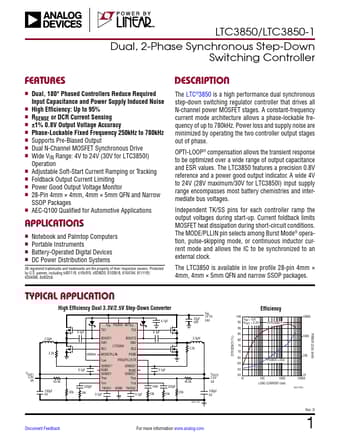

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC3850-1, LTC3850
Manufacturer
Linear Technology
File Size
1.12 MB
Datasheet
LTC3850_LinearTechnology.pdf
Description
2-Phase Synchronous Step-Down Switching Controller
Note
This datasheet PDF includes multiple part numbers: LTC3850-1, LTC3850.
Please refer to the document for exact specifications by model.
