LTC3025-1 - 500mA Micropower VLDO Linear Regulators

Linear Technology

Datasheet Details

Part number	LTC3025-1
Manufacturer	Linear Technology
File Size	250.11 KB
Description	500mA Micropower VLDO Linear Regulators
Datasheet	LTC3025-1_LinearTechnology.pdf

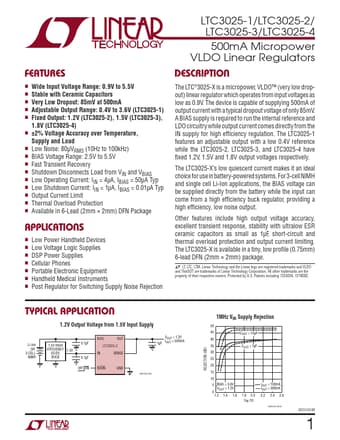

The LTC®3025-X is a micropower, VLDO™ (very low dropout) linear regulator which operates from input voltages as low as 0.9V.

n Wide Input Voltage Range: 0.9V to 5.5V n Stable with Ceramic Capacitors n Very Low Dropout: 85mV at 500mA n Adjustable Output Range: 0.4V to 3.6V (LTC3025-1) n Fixed Output: 1.2V (LTC3025-2), 1.5V (LTC3025-3), 1.8V (LTC3025-4) n ±2% Voltage Accuracy over Temperature, Supply and Load n Low Noise: 80µVRMS (10Hz to 100kHz) n BIAS Voltage Range: 2.5V to 5.5V n Fast Transient Recovery n Shutdown Disconnects Load from VIN and VBIAS n Low Operating Current: IIN = 4µA, IBIAS = 50µA Typ n Low Shutdown.
