LTC2605, LTC2625 - Octal 16-Bit Rail-to-Rail DACs

Linear Technology

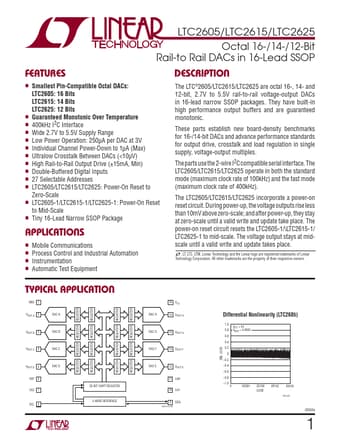

📥 Download Datasheet

LTC2605 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2605, LTC2625. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC2605, LTC2625
Manufacturer	Linear Technology
File Size	274.85 KB
Description	Octal 16-Bit Rail-to-Rail DACs
Datasheet	LTC2625_LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2605, LTC2625. Please refer to the document for exact specifications by model.

LTC2605 Product details

Description

n Smallest Pin-Compatible Octal DACs: LTC2605: 16 Bits LTC2615: 14 Bits LTC2625: 12 Bits n Guaranteed Monotonic Over Temperature n 400kHz I2C Interface n Wide 2.7V to 5.5V Supply Range n Low Power Operation: 250μA per DAC at 3V n Individual Channel Power-Down to 1μA (Max) n Ultralow Crosstalk Between DACs (
