LTC2435-1, LTC2435 - 20-Bit No Latency ADCs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC2435-1, LTC2435. Please refer to the document for exact specifications by model.

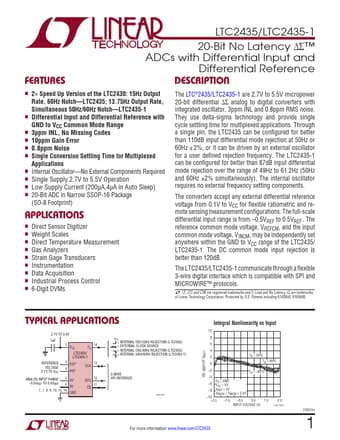

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC2435-1, LTC2435
Manufacturer Linear Technology
File Size 639.67 KB
Description 20-Bit No Latency ADCs
Datasheet download datasheet LTC2435_LinearTechnology.pdf
Note This datasheet PDF includes multiple part numbers: LTC2435-1, LTC2435.
Please refer to the document for exact specifications by model.

LTC2435-1 Product details

Description

n 2× Speed Up Version of the LTC2430: 15Hz Output Rate, 60Hz Notch LTC2435; 13.75Hz Output Rate, Simultaneous 50Hz/60Hz Notch LTC2435-1 n Differential Input and Differential Reference with GND to VCC Common Mode Range n 3ppm INL, No Missing Codes n 10ppm Gain Error n 0.8ppm Noise n Single Conversion Settling Time for Multiplexed Applications n Internal Oscillator No External Components Required n Single Supply 2.7V to 5.5V Operation n Low Supply Current (200µA,4

Features
