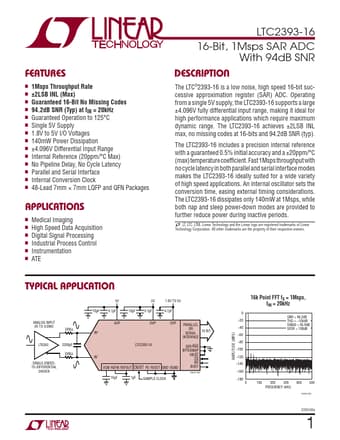

LTC2393-16 Datasheet Preview — Preview of LTC2393-16 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2393-16
Manufacturer	Linear Technology
File Size	219.86 KB
Description	1Msps SAR ADC
Datasheet	LTC2393-16_LinearTechnology.pdf

LTC2393-16 Product details

Description

The LTC®2393-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC.

Features

n 1Msps Throughput Rate n ±2LSB INL (Max) n Guaranteed 16-Bit No Missing Codes n 94.2dB SNR (Typ) at fIN = 20kHz n Guaranteed Operation to 125°C n Single 5V Supply n 1.8V to 5V I/O Voltages n 140mW Power Dissipation n ±4.096V Differential Input Range n Internal Reference (20ppm/°C Max) n No Pipeline Delay, No Cycle Latency n Parallel and Serial Interface n Internal Conversion Clock n 48-Lead 7mm × 7mm LQFP and QFN Packages.
