LTC2345-18 - Differential SoftSpan ADC

The LTC2345-18 by Linear Technology is a Differential SoftSpan ADC. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LTC2345-18 Differential SoftSpan ADC datasheet (Linear Technology).

Datasheet Details

Part number LTC2345-18
Manufacturer Linear Technology
File Size 1.80 MB
Description Differential SoftSpan ADC
Datasheet download datasheet LTC2345-18-LinearTechnology.pdf
Additional preview pages of the LTC2345-18 datasheet.

LTC2345-18 Product details

Description

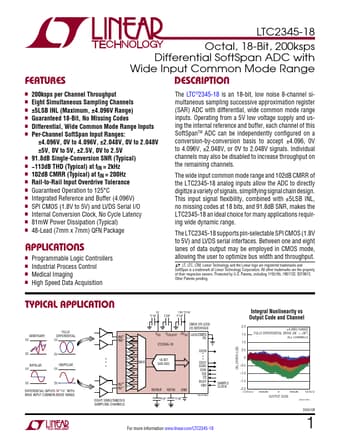

nn 200ksps per Channel Throughput nn Eight Simultaneous Sampling Channels nn ±5LSB INL (Maximum, ±4.096V Range) nn Guaranteed 18-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: ±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V ±5V, 0V to 5V, ±2.5V, 0V to 2.5V nn 91.8dB Single-Conversion SNR (Typical) nn 113dB THD (Typical) at fIN = 2kHz nn 102dB CMRR (Typical) at fIN = 200Hz nn Rail-to-Rail Input Overdrive Tolerance nn Guarantee
