LTC2280 - 105Msps Low Noise 3V ADC

Features

Integrated Dual 10-Bit ADCs.
Sample Rate: 105Msps.
Single 3V Supply (2.85V to 3.4V).
Low Power: 540mW.
61.6dB SNR, 85dB SFDR.
110dB Channel Isolation at 100MHz.
Flexible Input: 1VP-P to 2VP-P Range.
575MHz Full Power Bandwidth S/H.
Clock Duty Cycle Stabilizer.
Shutdown and Nap Modes.
Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit) 80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit) 65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit) 40Msps:.

LTC2280 105Msps Low Noise 3V ADC by Linear Technology - Datasheet Preview — Datasheet preview – LTC2280

Datasheet Details

Part number	LTC2280
Manufacturer	Linear Technology (now Analog Devices)
File Size	705.65 KB
Description	105Msps Low Noise 3V ADC
Datasheet	LTC2280 Datasheet

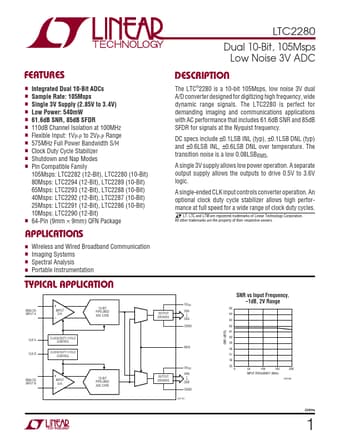

Additional preview pages of the LTC2280 datasheet.
