LTC2144-14, LTC2145-14 - 80Msps Low Power Dual ADC

Name: LTC2144-14
SKU: LTC2144-14-1133389

Linear Technology

📥 Download Datasheet

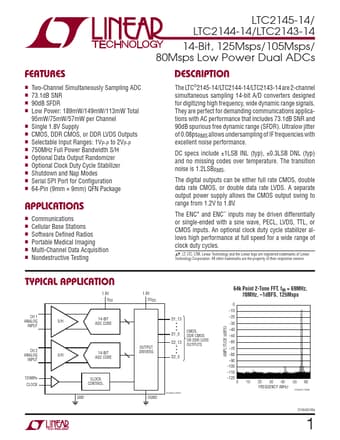

LTC2144-14 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2144-14, LTC2145-14. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC2144-14, LTC2145-14
Manufacturer	Linear Technology
File Size	652.08 KB
Description	80Msps Low Power Dual ADC
Datasheet	LTC2145-14-LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2144-14, LTC2145-14. Please refer to the document for exact specifications by model.

LTC2144-14 Product details

Description

The LTC®2145-14/LTC2144-14/LTC2143-14 are 2-channel simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals.

Features

n Two-Channel Simultaneously Sampling ADC n 73.1dB SNR n 90dB SFDR n Low Power: 189mW/149mW/113mW Total 95mW/75mW/57mW per Channel n Single 1.8V Supply n CMOS, DDR CMOS, or DDR LVDS Outputs n Selectable Input Ranges: 1VP-P to 2VP-P n 750MHz Full Power Bandwidth S/H n Optional Data Output Randomizer n Optional Clock Duty Cycle Stabilizer n Shutdown and Nap Modes n Serial SPI Port for Configuration n 64-Pin (9mm × 9mm) QFN Package.
